Plugins

A plugin is a small Python extension that adds something Winnow doesn't do on its own: an import format for a raw artifact, a page tab with its own tool, a panel beside the grid, a dashboard. Seven ship with Winnow as examples and are listed in the plugin manager ready to switch on; the rest are ones you or a colleague write. This page covers turning plugins on and off, installing one, what happens when one breaks, and what each bundled plugin does. To write your own, see Writing plugins.

What a plugin can do, and the trust model

A plugin is ordinary Python that Winnow imports into its own process. It runs with the same privileges as Winnow itself: it can read any file your account can read, write anywhere your account can write, and reach the network if the machine has one. Winnow does not sandbox it.

Three things follow from that, and they are the whole trust model:

• Nothing is ever fetched. Winnow has no plugin store and never downloads code. A plugin exists on your machine only because someone put its files there.
• Installing is the consent step. Copying a plugin into a plugins folder, by the installer or by hand, is the decision to trust it. Only install plugins you have read or whose author you trust.
• A plugin that is off is never imported. Its code does not run at all, not even its first line. The manager can still show its name, description and what it would add, because it reads those out of the file instead of running it.

Every bundled plugin is off until you switch it on. Only one of them, claude_assistant, talks to the network; see claude_assistant.

The plugin manager

Open it from Settings → Plugins → Manage plugins…. The Settings line above the button says how many plugins are on, how many are installed, and how many failed to load.

The manager lists every plugin Winnow found, each with an on or off tag and a one-line summary of what it adds (for example 1 import format · 1 dashboard). Click one to see its detail. Changes take effect immediately; there is no restart.

On and off: everywhere, or for this case

Each plugin has two switches:

Row	Buttons	Means
Everywhere	Off / On	The default for every case on this machine. Picking either also clears this case's own setting, so the open case follows it
In "case"	Follow / On / Off	This case only. Follow means "use the Everywhere setting". On or Off overrides it for this case, whatever the machine default is. Shown only while a case is open

The per-case setting is stored in the case file, so it travels with the case. The line at the foot of the detail pane spells out the result, for example On for “Acme-IR” only — every other case follows the everywhere setting (Off).

The defaults differ by where a plugin came from:

• a bundled example is Off everywhere until you switch it on;
• a plugin you installed, or dropped into a plugins folder, is On everywhere from the start.

Applying a profile sets the per-case switch for every installed plugin: On for the profile's plugins, Off for all the others. If a plugin you expect is off in one case, look at its In "case" row first.

What the manager shows before you switch one on

Section	Shows
Header	Name, version, an example tag for a bundled plugin, and its folder name
Description	The plugin's own description. A plugin that declares none says so
What it would add (off)	The kinds of thing its source registers, read from the file: pinned tab, import format, toolbar panel, page panel, dashboard, row action, route, case table. This is what it can add, not a count
What it adds (on)	What it actually registered, one row each. An import format has an Import files… button here
Where it came from	Folder, Entry point, Plugin API (the version it asks for and the version this build provides), README if it has one, and Status: not imported, loaded — no errors or failed to load
Used by	Profiles that turn it on when applied

The manager cannot tell you what a plugin's Python does once it runs. Every plugin that is on runs code in Winnow's server process, whatever the list says it adds; whether that code touches the network or your files is something only its source and its README can tell you.

Installing a plugin

From the manager

Install a plugin… in the manager offers two buttons:

Button	Pick
Pick a .py file…	A single-file plugin: the .py file itself
Pick a plugin folder…	A folder plugin: the folder that directly contains __init__.py (not its parent, not a subfolder). Everything inside is copied

The plugin is copied into the first folder listed under Read from in the manager (normally plugins/ in the Winnow folder) and switched on at once. If a plugin with that name is already installed you are asked whether to replace it. Installing works only from a browser on the machine Winnow runs on.

The bundled examples don't need installing; they are already listed.

By hand

Copy a .py file, or a folder containing __init__.py, into plugins/ in the Winnow folder. Winnow rescans its plugin folders when it starts, when you open or switch cases, and when you switch any plugin on or off in the manager, so a plugin dropped in while Winnow is running appears after the next of those. Like an installed plugin, it is on by default.

Names starting with . or _ are ignored, which is a quick way to park a plugin without deleting it.

Plugins kept somewhere else

Winnow reads plugins from these folders, in this order:

1. plugins/ in the Winnow folder (where installs go);
2. the bundled examples, examples/plugins/;
3. the folder named by the WINNOW_PLUGINS_DIR environment variable, if set;
4. each folder given with --plugins-dir DIR on the command line (repeat the option for more than one).

The manager lists them under Read from. See Installation for starting Winnow with command-line options.

Same name in two folders

Plugins are matched by their file or folder name, and the first folder in the list above wins. A plugin in plugins/ called pivot therefore replaces the bundled pivot example completely: only your copy is listed (without the example tag), and only it ever runs. That is how to run a modified copy of an example. Per-case settings are kept by name, so a case where pivot was switched off keeps it off for your copy too.

The order also works the other way: a plugin called pivot in a WINNOW_PLUGINS_DIR or --plugins-dir folder is hidden behind the bundled example and never loads. Give it a different name, or put it in plugins/.

When a plugin fails to load

A broken plugin never takes Winnow or other plugins down with it. When one fails to import, or its setup raises an error:

• the Settings line adds · N failed to load;
• the manager tags it error and shows a This plugin did not load box with a one-line reason; Status reads failed to load;
• the full Python traceback is printed in the console window Winnow is running in, which is what the plugin's author will want;
• nothing it registered before the error stays registered: a plugin either loads completely or adds nothing.

A plugin written for a newer Winnow says so instead of failing obscurely, with a reason like needs Winnow plugin API v14, this build provides v13 — update Winnow. Where it came from → Plugin API shows the same comparison.

An install that copies correctly but fails to load is still installed: the files stay, and a toast gives the error. Fix or delete the files, then switch the plugin off and on again to retry.

Secrets for plugins: Settings → Environment

A plugin that needs an API key or password reads it from an environment variable. Settings → Environment keeps these for your user account, so you don't have to set them in a shell every time.

• Only names beginning WINNOW_ can be set or read (type the rest of the name after the fixed WINNOW_ prefix).
• Values are one line, up to 8,192 characters, and are never shown again once saved.
• They are stored outside any case and outside Winnow's settings: on Windows in your user environment in the registry (HKCU\Environment); elsewhere in ~/.config/winnow/env (or $XDG_CONFIG_HOME/winnow/env), readable only by you. The Environment section names the exact location.
• A saved value takes effect immediately for the running Winnow.
• A variable also set in the shell that started Winnow keeps the shell's value; the list says set outside Winnow — that value wins; change it there.
• Variables Winnow itself uses for its own settings, such as WINNOW_PLUGINS_DIR, are listed as Winnow setting — read-only here.
• The section works only from the machine Winnow runs on; elsewhere it says Only available from the machine Winnow is running on.

Case variables (Case ▾ → Case settings… → Variables) are a different thing: they are stored in the case file and travel with it, so they are no place for a secret.

The bundled plugins

Folder	Listed as	Adds
pivot	pivot-table	A Pivot tab: cross-tabs over a table
first_last	first-last	A First/Last tab: the first and last event of each group, as a new table
mft_usn	mft-usn	Import formats for raw $MFT and $J
lateral_movement	lateral-movement	A Lateral movement tab: a host-to-host graph over time
esxi_logs	esxi-logs	An import format for ESXi and Linux host logs, and a board
top_values	top-values	A Top values panel above the grid
claude_assistant	claude-assistant	A Claude tab and a Copilot panel in the SQL pane. Uses the network

All of them are off until you switch them on. The plugin tabs appear in the page strip beside SQL, Timeline, Notes and Watchlist.

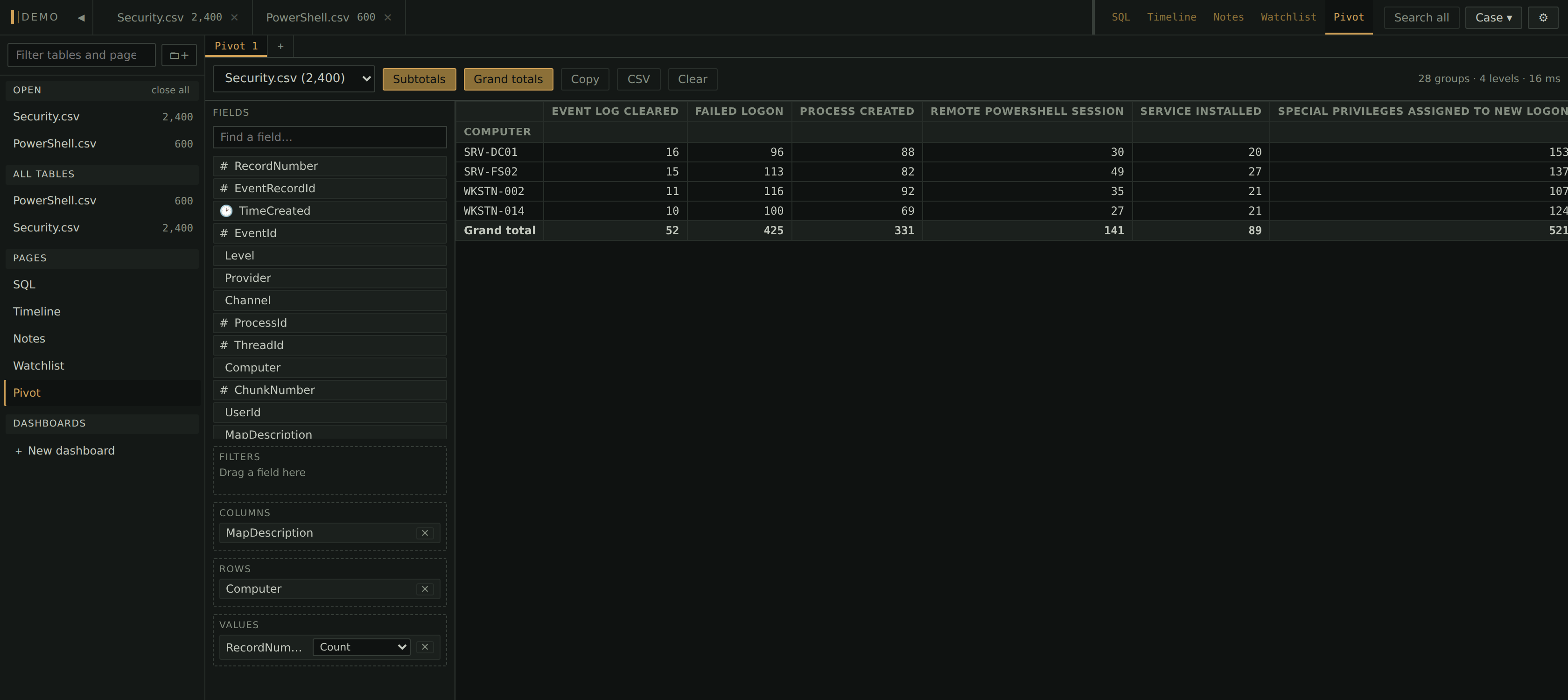

pivot

A spreadsheet-style pivot table. Pick a table (merged tables included), then drag fields into Filters, Columns, Rows and Values. Or click a field — or Tab to it and press Enter — and pick an area from the Place in menu that opens under it (arrow keys move, Enter picks, Escape closes). An area the field is already in is greyed out with "Already there", and Columns or Rows says "Moves it out of Rows" (or Columns) when picking it would take the field out of the other one. Values can be Count, Distinct count, Sum, Average, Min or Max; Count counts non-empty cells, and Sum and Average ignore text that isn't a number. Filters use is any of, is none of, contains, does not contain, starts with, > (numeric), < (numeric), is empty and is not empty.

The top of Filters carries the case's tags as chips, and they work as the tag ribbon above the grid does (see Tagging and notes): click a tag to count only the rows carrying it, click a second one to add its rows, and right-click a tag for Filter to tag, Exclude tag and Clear the tag filter. Any tag counts every tagged row and No tags every row nobody has tagged yet. The number on a chip is how many rows of the pivot's table carry that tag. When you come back to the Pivot tab from the grid, a pivot filtered on tags runs again, so rows you tagged in the meantime are counted.

• Subtotals and Grand totals toggle the total rows and columns.
• While a change is being worked out, the status line says Aggregating… and the table already on screen stays, dimmed, until the new one replaces it. Its numbers can't be clicked in the meantime.
• Copy puts the result on the clipboard as tab-separated text; CSV downloads it as a file.
• Click any number to see the rows behind it (up to 500).
• Several pivots can be open as sub-tabs (+ at the end of the sub-tabs adds one; double-click one to rename it). They are saved in the case, tag filter included, and restored when you come back; Start fresh on the restore banner forgets them.

A pivot reads the whole table, not the grid's current filtered view: the grid's filters, search and timeframe don't apply to it, and its tag chips are its own. It stops at 16 grouping levels and 20,000 groups per level, and draws at most 60 column groups.

first_last

Turns many events into bookends: group a table on one or more columns (Host + User, say) and get the first and last row of each group, in order of a column you choose. Forty thousand logons become a few hundred session start and end rows that read as a story.

Drag fields from the list into the zones, or click a field — or Tab to it and press Enter — and pick a zone from the Place in menu that opens under it (arrow keys move, Enter picks, Escape closes). A zone the field can't go into is greyed out with the reason: "Already there", "Not a number column" for Total up, or "Full — 6 columns at most" for Group rows on. Ordered by holds one column, so it says what it replaces ("Replaces Timestamp").

Zone	What goes in it
Group rows on	Up to 6 columns
Ordered by	The column that decides first and last; defaults to the table's first datetime column
Include columns	Columns carried onto each result row
Total up	Numeric columns to total per group
Count unique	Columns whose distinct values each group counts, blanks left out, as a Unique count of <column> column
List values	Columns whose distinct values each group lists in one cell, as a Values of <column> column
Filters	Which source rows take part
Description	A template for each row's description; left empty, it reads {which} of {count}

The description template accepts {which} (First, Last or Only), {which:number} (the row's position in its group: 1 for the first, the group's size for the last), {count} (rows in the group), {ColumnName} (that row's value, any column), {values:Column} (the group's distinct values of any column, sorted, blanks left out), {unique:Column} (how many there are), and {sum:Column}, {min:Column}, {max:Column} (the group's total, smallest and largest of any number column; it need not be under Total up). A list names at most 50 values and says how many more there were. A new sheet starts with the description empty. A misspelt placeholder is reported in the preview rather than written into the result.

Under the description box are the functions: click {which}, {which:number} or {count} to insert it, or click {sum:…}, {min:…}, {max:…}, {values:…} or {unique:…} to start one and pick its column from the list that opens. Drag a field from the field list into the box to insert it as {ColumnName} where you drop it, or onto a function to fill that function in. Typing { in the box completes names too.

The result's columns are the ordering column, the included columns, any Sum of, Unique count of and Values of columns, the description, and last the Add the whole row as a JSON cell column when that is ticked. The table picker shows a table's nickname when it has one.

The preview shows 8 groups and follows your changes (Auto-update, or Refresh). Copy result copies the whole result as tab-separated text (up to 20,000 rows). Create table… writes it into the case as a new table, named First-Last of <table> by default (the nickname, if it has one), which you can tag, put on the Timeline and export like any other; tick Add these rows to the Timeline (tags every row) to do the first two at once. A result is limited to 100,000 groups. Merged tables work, and sheets are kept per case like pivots.

On a big table a preview can take several seconds, and the rest of Winnow stays usable while it runs: switch tables, scroll, filter or search as usual. Each change stops the preview it replaces, so quick edits don't pile up. If you leave the tab while a preview runs, a card in the jobs panel says so, then reads N groups — the preview is ready when it lands; its Show button takes you back to that sheet. Copy result works the same way: the button reads Copying…, and if you have left the tab by the time the result is ready, the card has a Copy button rather than writing to the clipboard behind your back. Create table closes its dialog straight away and shows a Creating "<name>" card with Cancel. A quick create opens the new table as before; a slow one, or one that finishes while you are elsewhere, leaves you where you are and shows Created "<name>" with Open table.

mft_usn

Reads raw NTFS artifacts directly, with no MFTECmd or other tool needed. It is pure Python, so it works on an airgapped machine. It adds two import formats:

Format	Matches	Options
NTFS $MFT (raw)	$MFT, $MFT.copy*, *.mft	Records: all, in-use or deleted
NTFS USN journal ($J, raw)	$J, *$UsnJrnl*, $Extend*$J, *.usn	—

The $MFT table has one row per file record: entry and sequence numbers, the parent entry, in-use and directory flags, the full reconstructed path, file name, extension and size, $STANDARD_INFORMATION and $FILE_NAME timestamps side by side, and an SI<FN Created flag for the classic timestomping shape. The $J table has Timestamp, FileName, Extension, Reason (decoded), EntryNumber, SequenceNumber, ParentEntryNumber, ParentSequenceNumber, USN, FileAttributes and SourceInfo, so it joins back to an imported $MFT in the SQL pane.

Import by dragging the files onto Winnow or with a folder import (see Cases and importing). $MFT and $J have no extension, which some file pickers' type filters won't let through; the Import files… button for each format in the manager's What it adds section always can.

lateral_movement

Draws movement between hosts as a directed graph, with a timeline under it. The Movement events panel lists the ways a table can describe one host reaching another; six ship ready for EvtxECmd output:

• Remote logons (4624, logon types 3 and 10)
• Failed logons (4625)
• Explicit credentials (4648)
• RDP sessions (21/24/25)
• RDP connection attempts (1149)
• Share access (5140/5145)

Tick one or more movement events in the panel (each is offered for the tables it fits), then Build graph. Edge width is the number of events, arrows show direction, and a node's size is its total events. Drag nodes to arrange them, scroll to zoom, drag the background to pan. Brush the histogram under the graph to narrow it to a time window. Double-click a host to open the first selected event's table filtered to that host. Apply case timeframe (on by default) limits the graph to the timeframe filter set in the grid.

+ New event type defines your own movement event, for firewall or netflow tables, say, or a narrower version of a shipped one. The builder reads its columns from one table (Read columns from) and guesses the Source host, Destination host, User column and Time column from their names. Under Only rows where, add conditions such as EventId is 4624; the chips under each condition are the column's most common values, and clicking one fills it in. As you change anything, the right side shows what the event finds in that table: how many rows match, how many links and hosts they make, and the busiest links. Start from copies an existing event as a starting point, and Offer it on chooses between every table of the same kind (Event logs (EvtxECmd) tables, say) and any table that has the columns the event reads. Names must be unique.

Your definitions are saved on this machine and offered in every case. Events… lists them in two sections, Yours and Shipped, each with the hop it draws, the tables it is offered on and how many of this case's tables it fits. Click an event's name to open it in the builder: yours to edit, a shipped one as a new event of your own. An event's ⋯ has Edit…, Copy to a new event… and Delete… for yours, and Copy to a new event… for a shipped one. + New event… at the bottom starts one from nothing. A graph takes up to 20 selections and 8,000 edge rows.

The shipped KAPE triage profile turns this plugin on.

esxi_logs

Reads VMware ESXi support bundles and UAC Linux collections into one shared layout: Timestamp, Log, Severity, Component, PID, CPU, User, SourceIP, Message. It adds one import format, ESXi / Linux host log, which recognises hostd, vmkernel, auth, shell, vobd, vpxa, syslog, rhttpproxy, esxupdate, vmksummary, fdm, sudo, messages and secure logs (rotated copies included) by name. The Log type option is auto by default; set it to force one type.

With this plugin on, every .log file you import goes to it, including logs from other systems; one it doesn't recognise is read as type other. Switch it off for cases where .log files should import some other way.

Syslog-style lines carry no year; the plugin works one out so they sort and filter as real dates. Import the whole bundle as an archive or folder and every log becomes a table with the same columns, which is what lets a board count across all of them.

It also offers a board, ESXi / Linux host overview (log lines, log types, failed SSH logins, top source IPs, activity over time), under Dashboards → Library in the sidebar. Switching the plugin on doesn't add the board to a case; click it there to add it. The shipped ESXi / UAC triage profile turns this plugin on and brings a wider 17-widget board; see Dashboards.

top_values

A Top values button on the grid's toolbar opens a panel between the toolbar and the grid listing the ten most common values of a column you choose, counted over the rows in the current view, so it follows your filters and search. Click a value to copy it. Whether the panel is open is remembered in this browser.

claude_assistant

Ask Claude about the open case. This is the one bundled plugin that is not airgap-compatible: it sends requests to Anthropic's API over the internet.

It adds:

• a Claude tab: a chat about the case, with a send schema checkbox (on by default), Send and Clear;
• a Copilot button on the SQL page that opens a panel beside the editor. It answers with SQL, and each SQL block in an answer has Insert and Run buttons.

What it sends. Each question sends, to Anthropic:

• a fixed instruction text;
• the case schema, when send schema is ticked (the Copilot always sends it): for every table that isn't a merge, its name in the sidebar, its row count, and each column's name and inferred type;
• up to the last 40 turns of this conversation;
• your question;
• in the Copilot only, the query currently in the SQL editor.

No cell values from your tables are sent, unless you paste them into a question yourself. Table names are often evidence file names, and they are sent; untick send schema in the Claude tab if that matters. Each conversation is stored in the case file, so it travels with the case; Clear forgets it.

Requirements. The Anthropic Python SDK must be installed in the Python that runs Winnow:

pip install -U anthropic

Until it is, asking anything returns The claude-assistant plugin needs the official SDK on the server: pip install -U anthropic. Then give it an API key: save it as WINNOW_ANTHROPIC_API_KEY under Settings → Environment (it takes effect at once), or set ANTHROPIC_API_KEY in the environment Winnow is started from and restart Winnow. A key saved in Settings is used first.

Writing your own

The developer guide, Writing plugins, covers every extension point, with the bundled plugins as worked examples. Each bundled plugin's folder under examples/plugins/ also has its own README.
