Filtering and searching

Filtering is how a table of two million rows becomes the forty that matter. Winnow gives you several ways to narrow a table: a filter box under every column, a value picker, a filter builder for AND/OR logic, saved and shipped triage filters, a timeframe, a search box that reads every column, and the tag filter. They all stack, and none of them touches your data. Clearing them brings every row back. Each open table keeps its own filters and search when you switch to another tab and back; opening another case starts its tables with none.

How filters combine

Every filter you set narrows the rows left by the others. Column filters, the filter builder, the search box, the tag filter, the timeframe and Hide empty rows are all applied together (AND). The line beside the toolbar shows how many rows are left, for example 58 of 400 rows.

If nothing is left, the grid shows No rows match with a Clear filters button.

The filter row

By default every column has a filter box under its header. Type into one and the grid updates as you type. Enter commits the filter and puts the focus back on the grid. Escape clears that box.

If you prefer a less crowded header, turn off Settings → Grid & layout → Always-on filter row. A filter bar then appears above the grid. It shows only the filters you have set, as chips you can click to edit or remove with ✕. To filter a new column, click the ⌕ on its header, or use + filter a column…, which lists every visible column and lets you type to find one.

To filter from a cell, select it and press f to filter its column to that value. F does the same but drops every other filter first. Right-click a cell for the same choices, worded Narrow to this value, Reset to this value and Exclude this value, plus Filter by values…, which opens the value picker. Reset to this value keeps the timeframe. Show in histogram, in the same place, colors the value's rows in the histogram instead of filtering them; see The histogram.

Filter syntax

Type this	Matches	Notes
svchost	cells containing the text	Ignores case for A–Z only
!svchost	cells not containing the text	Empty cells match too
=4624	cells exactly equal to the value	Case-sensitive
!=4624	cells not equal to the value	Case-sensitive; empty cells match too
^C:\Users	cells starting with the text	Ignores case for A–Z only
>1000 >=1000 <1000 <=1000	greater than, at least, less than, at most	Numeric on number columns only (see below)
/psexe(c|svc)/	a regular expression	Python syntax; ignores case in every script
"" or ''	empty cells
*	cells with any value
a.exe|b.exe|c.exe	cells exactly equal to any of the values	Case-sensitive, like =
a.exe|""	cells equal to any of the values, or empty	"" in a list is an empty cell
=" padded " "a|b"|c.exe	exact values that bare text can't hold	See Quoted values

Spaces at either end of what you type are ignored. An operator needs a value after it: a lone = or ! is read as text to look for. There are no wildcards. A %, _ or * inside a value is matched literally. An operator applies to everything after it, so !a.exe|b.exe means "does not contain the text a.exe|b.exe", not "neither of these"; use the filter builder for that.

Settings → Filter & search syntax has a short version of this table.

Quoted values

Some exact values can't be typed bare: the box trims spaces at either end, a | would split a list, and a list that starts with <, >, =, !, ^ or / would read as an operator or a regular expression. Put those values in double quotes, in an = or != filter or as items in a list:

Type this	Matches
=" padded "	cells exactly equal to padded, spaces included
"cmd | more"|cmd.exe	cmd | more or cmd.exe
"<unknown>"|"/tmp/"	<unknown> or /tmp/

Inside quotes, "" stands for one ". Quotes are only read this way when the value needs them. ="C:\Program Files\x.exe" still matches the text with its quotes, as it always has, because a quoted path is a common value. The value picker and the f key write quotes for you when a value needs them, so you rarely type them yourself.

A value with a line break in it can't be put in the filter box at all.

Case sensitivity

The contains, does-not-contain and starts-with filters ignore case for the letters A–Z only. alpha finds ALPHA, but älpha does not find ÄLPHA, and Cyrillic or accented text is matched exactly. To ignore case in any script, use a regular expression, such as /älpha/.

Equals (=), not-equals (!=) and lists (a|b|c) compare the exact text, case included: =SVCHOST.EXE and =svchost.exe give different results. The value picker writes exact values for you, so this rarely matters when you tick values there.

Numbers, dates and text

When a table is imported, Winnow decides each column's type from its first 500 rows. A column is a number column if every non-empty value in that sample is a plain number such as -12 or 3.5. It is a datetime column if at least 80% of the sampled values look like dates. Every other column is text. A derived column that extracts, decodes, combines or looks up values follows the same number rule, over all of its values rather than a sample, once it finishes building: a regex capture of byte counts is a number column. You can see each column's type in the table menu (C, or right-click a tab and choose Columns…).

The comparison filters (>, >=, <, <=) compare numbers only on number columns. On a text column they compare text, character by character, so >1000 counts 30 and N/A as greater than 1000. On a number column, a cell that isn't a number (such as N/A or a blank) never matches a comparison, and typing something that isn't a number after the operator shows a "Filter error" message.

When a filter can't run, such as a regular expression with a syntax error, Winnow shows a "Filter error" message that names the problem and keeps the rows you had.

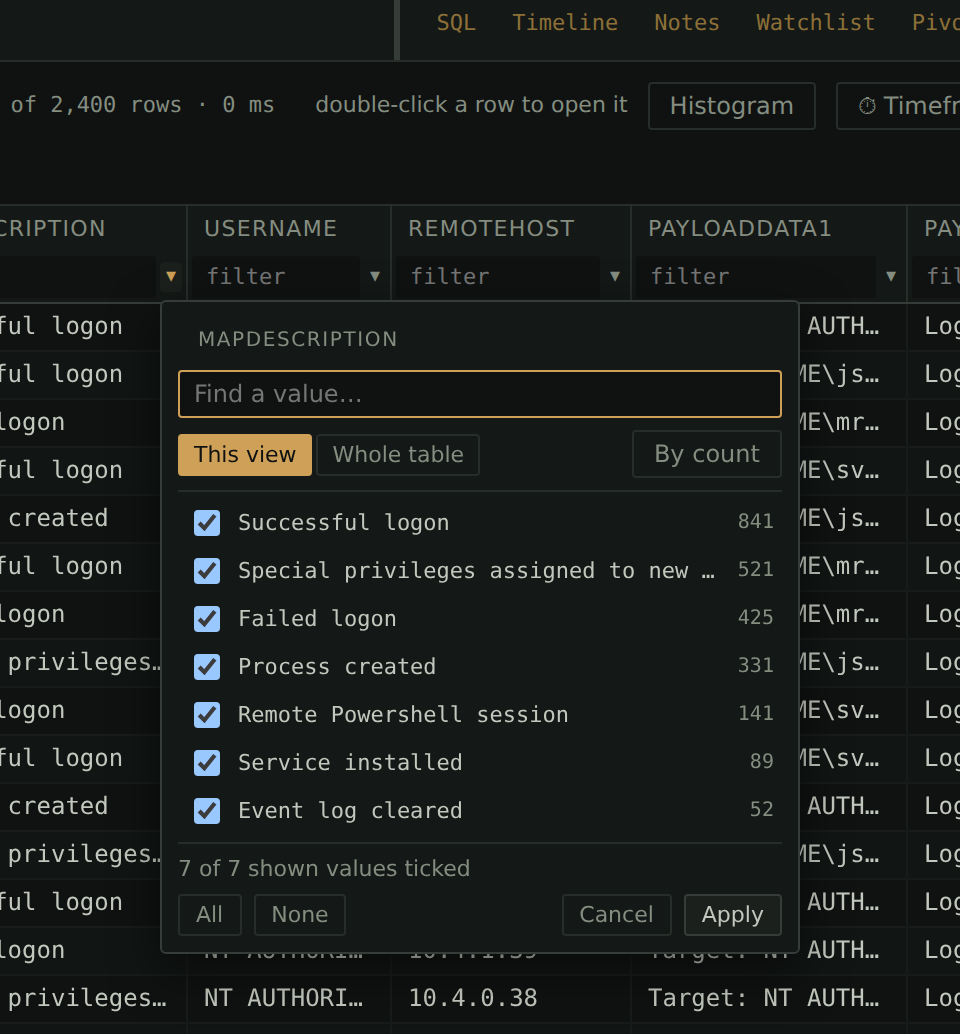

The value picker

The ▾ beside a column's filter box opens the value picker. It lists the column's distinct values with a count for each, most common first. Tick the values you want and click Apply (or press Enter). You can also open it with v for the column under the cell cursor.

Control	What it does
Find a value…	Narrows the list as you type
This view / Whole table	Values among the rows the other filters leave, or every value in the column
By count / A→Z	Most common first, or alphabetical
All / None	Tick or untick every value shown
Apply / Cancel	Apply the selection, or close without changing anything

The picker starts on This view, so the list reflects your other filters. If the column already has a value selection, it starts on Whole table so that you can widen the selection again. Empty cells are listed as (empty).

The picker writes an ordinary filter into the column's filter box: one value becomes =value, several become a|b|c, and (empty) ticked alongside other values becomes "" in the list. A value that needs quotes gets them, such as "a|b"|c or =" padded ". Apply with nothing changed leaves the column's filter as it is. Ticking every value in a complete list removes the filter, unless the list is This view and the column's own filter decided what it lists: after a filter such as svchost, >30 or !p1 on the column, the picker lists only the values that filter leaves, and ticking them all filters to exactly those values. The one selection the box can't hold is a value with a line break in it; Winnow applies that through the filter builder instead and tells you so ("applied under Filters ▾").

The list holds the 1,000 most common values at most. When a column has more, the picker says so. The Find a value… box only searches the values already listed, so to reach a rarer value, narrow the column first (for example with a contains filter) and reopen the picker.

The ▾ buttons appear automatically on tables under 250,000 rows, because reading a column's values means scanning it. To change that, open the table menu's Value dropdowns section and choose Auto · under 250,000 rows, On or Off for the table. The same section lists every column with its own Auto, On and Off, to force the dropdown on or off for that column; Set back to Auto at the bottom undoes those. Each column in the Show, hide & order list also has a ▾ button that does the same for its column.

Stacking a column

Right-click a column header and choose Stack values (rarest first)… to see the column's values for the current view as a bar chart: one bar per value, every bar to one scale, with round numbers along the top and the Share of the rows counted at the end of each bar. Over the chart are how many distinct values the column has, the rows counted and how many values are seen once.

• Rarest first is where one-off command lines and odd hosts show up; Most common turns it round.
• Click a bar to filter the grid to that value. Right-click a bar, or click its ⋯, for Filter to this value, Exclude this value and Copy value.
• Point at a bar, or move to it with the arrow keys, and the line under the chart gives its value, its rows and its share. Enter filters to it.
• Filter values… narrows the chart to the values that contain what you type. Each bar keeps its length.
• The table's other columns are down the left, with their type or the filter on them: click one to stack it instead. Find a column… searches them, and ☆ pins a column you stack often.

A few values get broad bars; a long tail gets thinner ones and scrolls. Stack counts up to 1,000 values and draws 500 at a time. When there are more, the line under the chart says so: filter the grid, or the values, to reach the rest.

To take every value away as a list instead, Copy unique values in the same menu puts the column's distinct values for the current view on the clipboard, one per line (see Copying).

The filter builder

The filter builder is for logic the filter row can't express, such as "EventId is 4624 or 4625, and LogonType is not 3". Open it from Filters ▾ → Filter builder… or press e.

A filter is a group of conditions. In the Match … of: line at the top of each group, choose AND (every condition must hold) or OR (any one is enough). Use + condition to add a condition and + group to nest another group. Each condition takes a column, an operator and a value:

Operator	Notes
contains, does not contain, starts with	Ignore case for A–Z only
equals, does not equal	Case-sensitive
matches regex	Python syntax; ignores case
> (numeric), >= (numeric), < (numeric), <= (numeric)
is empty, is not empty	No value needed
is any of (one per line)	Exact values, one per line

A datetime column gets a 📅 date picker next to the value. When you open the builder, any filters in the column boxes move into it as conditions, so the builder always shows the whole filter.

The conditions are on the left, under Conditions. The right side says what they come to: how many rows match in the whole table, counted again as you change anything, beside the rows in the table and the number of conditions. The search box, the tag filter and the timeframe narrow the grid further, so the grid can show fewer (a merge isn't counted here: apply the filter and read the grid's count). Under the counts, SQL shows the same filter as a SQL expression. You can edit either side and they stay in step. If you type SQL that the guided editor can't show, the builder switches to raw SQL mode and says so. A LIKE becomes a guided condition only when it means exactly the same thing: '%text%' is contains and 'text%' is starts with, as long as the text has no other % or _ in it. Any other LIKE, such as '%.exe', 'p_.exe' or 'P1.EXE' (which ignores case, unlike equals), stays as raw SQL and filters exactly as typed. A contains or starts with whose value holds a % or _ is shown with an ESCAPE '\' clause, so the SQL matches those characters literally, as the condition does. Start over with the guided editor leaves raw mode. Raw SQL is checked when you click Apply, and an error is shown under the box. Only plain conditions are accepted: no SELECT, no ; and no comments.

The Group by section under the SQL lets a filter carry a grouping too (see Grouping rows). Along the bottom, Apply runs the filter, Clear empties the conditions, Save filter… keeps it (see Saved filters) and Saved filters… opens the list.

To see the current filter as a full query, press Q. It opens in a new tab of the SQL pane.

Saved filters

Click Save filter… in the filter builder to keep a filter. A saved filter stores the builder's conditions, the sort, the search box and any grouping. It is saved for the table's set of column names and lives outside the case, so it is available in every case you open.

When you open a table whose columns exactly match a saved filter, Filters ▾ gets an accent ring (until you apply something) and lists the filter under For this table. Filters saved for a similar but not identical set of columns are listed with "(similar)" after the name. Nothing is applied until you pick one. While one is applied, the button reads ★ followed by the filter's name.

To step through the saved filters made for exactly this table's columns, press ] or w for the next and [ or q for the previous. Past either end the filters are cleared rather than wrapping round, so pressing q repeatedly always ends on the unfiltered table.

Applying a saved filter replaces the builder's conditions, the search and the grouping. It leaves the column boxes, the tag filter and the timeframe as they were, so a host filter in a column box keeps narrowing each saved filter you step through.

Filters ▾ → Saved filters… opens the full list. Down its left are Every saved filter and, under Header sets, each set of columns that has filters saved for it, with the open table's set first and marked open table. It opens on the open table's set. A set's own list says which columns it is, and Nickname… (Rename nickname… once it has one) gives it a shorter name, used here, in Filters ▾ and in the Tables manager. Every saved filter lists every filter, under a heading for its set. Filter by name, nickname or column… narrows the list. Click a filter's name to apply it. Drag a filter up or down within its column set to change the order [ and ] step through. Each filter's ⋯ menu has:

• Edit…: applies the filter to the open table and opens it in the builder, where Update "name" saves over it and Save as new… keeps both. It needs a table open.
• Rename…
• Move up and Move down: the same reordering as dragging, from the keyboard.
• Delete…, which asks first.

Export filters… and Import filters…, along the bottom, move them between machines as a JSON file. The same buttons are in Settings → Saved filters. Filter builder… beside them opens the builder on the open table.

Shipped triage filters

Winnow ships 28 ready-made triage filters for EvtxECmd, RECmd and MFTECmd output. They are added to your saved filters the first time Winnow runs, and they are offered like any other saved filter: nothing is applied until you pick one. If you delete or rename one, it stays that way.

Column set	Filters
Event logs (EvtxECmd)	20 filters named EVTX — …: log clearing and Defender off; Defender detections and tamper; Defender config changes; logons; incoming and outgoing RDP; Sysmon present; network share access (5140/5145); service installs; WMI; process create/exit (4688/4689); crashed applications; user and group changes; PowerShell; firewall rule changes; scheduled tasks; BITS transfers; Group Policy (client and DC); system shutdowns
Registry (RECmd batch)	5 filters named Registry — …: basic system info; audit and PowerShell policy; TypedPaths / RecentDocs; UserAssist / BAM; Run keys (autoruns)
NTFS $MFT (MFTECmd)	3 filters named MFT — …: executables in odd places; Startup folder and run-key paths; a suspicious tool sweep that uses Advanced search

A few of them also group the result: EVTX — PowerShell and EVTX — BITS transfers group by PayloadData1, and Registry — UserAssist / BAM groups by HivePath.

The timeframe filter

The timeframe filter keeps rows whose timestamp falls inside a range. Click ⏱ Timeframe or press R to set it, then click Apply, which always turns it on:

• Keep applied when switching tables decides whether the timeframe follows you to the next table (see below). It is on by default and is saved as soon as you click it.
• Column is one datetime column, or All datetime columns (catches a match on any of them). With all columns, a row is kept if any of its timestamps is in range, which catches a file whose creation time was changed but whose modified time wasn't.
• Start and End take YYYY-MM-DD HH:MM:SS in 24-hour time. A date alone, or a date with HH:MM, also works, and you can set only one end. The 📅 button opens a date picker.
• From tagged rows with Fill range sets the range to the earliest and latest timestamps among your tagged rows (all tags, or only the tags you toggle). It only fills the boxes; Apply still turns the filter on.

Both ends are inclusive. A date without a time means midnight at the start of that day, so an end of 2024-01-05 stops at 2024-01-05 00:00:00. To include the whole day, end at 2024-01-05 23:59:59.

The timeframe understands timestamps written as 2024-01-05 13:22:01 (or with a T), US-style 1/5/2024 1:22:01 PM, and month names such as Jan 5 2024 or Jan 5th, 2024 1:22 PM. Fractions of a second and time-zone offsets in the data are ignored: the comparison uses the date and time as written. Rows whose timestamp can't be read are left out while the timeframe is on.

The timeframe stays on when you clear filters, apply a saved filter or reset the view, and the button shows ⏱ followed by the column name while it is active. Press r to turn it off without losing the range, and r again to turn it back on; opened while it is off, the dialog says Off right now — Apply turns it back on. Clear in the dialog removes it. A table with no datetime column is not narrowed by it at all.

What happens when you switch tables depends on Keep applied when switching tables:

• On (the default): there is one timeframe for the whole case, and every table you open is narrowed by it.
• Off: each table keeps its own timeframe, the way it keeps its own filters. A table you have not set one on opens without one, and going back to a table puts back the timeframe it had.

The same switch is in Settings, under Filter & search syntax.

Jump to timestamp… in the same dialog (or J) scrolls to the row closest to a moment instead of filtering. Press . in any table to jump to the same moment again.

The histogram

Click Histogram or press h to show a bar chart above the grid of when the rows in the current view happened. Choose which datetime column to chart from its list. The line beside it gives the row count, the bucket size and the tallest bar. Winnow picks a bucket size, from one second up to a year, that gives bars a few pixels wide across the strip, so narrowing the timeframe gives finer buckets. Hover a bar to see its time range and row count.

Three buttons color the bars, one at a time; click the pressed one again to go back to plain bars. In each, a row counts once, so the bars stay as tall as the plain ones.

• Tags colors the bars by tag: each row counts under the first tag it carries, with untagged rows underneath.
• Value colors the rows holding one value, as if they were tagged, and grays out everything else. To choose the value, right-click a cell and choose Show in histogram; that also opens the histogram if it is closed. The value stays charted while you click around the grid. To have the chart follow the selected cell instead, right-click Value and choose Follow the selected cell; then clicking another cell, or moving to one with the arrow keys, charts its value. Right-click Value again to turn that off. The line beside the chart names the value and how many rows hold it. A very long value, such as a whole JSON document, is too long to chart, and the strip says so.
• Groups works while the grid is grouped: the first 3, 5 or 8 groups (pick with First 3, First 5 or First 8) each get a color, and everything else counts as "Other". Each of those groups' headings in the grid gets a swatch in the same color. A group keeps its color when a filter moves it up or down the list. With nested grouping, the colors go to the first level's groups.

While the view is changing (a filter, a search, a sort, the timeframe) and until its new chart has loaded, the old chart is faded and gray and the line beside it says "Updating…", so a chart at full strength is always the one for the rows in the grid.

Drag across the bars to set the timeframe filter to that range on the charted column. Clear timeframe removes it again. The histogram follows every filter, so it is a quick way to see where a search's hits cluster in time. It stays open when you open another case and charts that case's table once it has loaded; a case with no table open shows "Open a table to chart when its rows happened."

The histogram also shows where you are in the table. A mark along the top of the chart covers the time span of the rows on screen and moves as you scroll, and a line through the bars marks the selected row. When the rows on screen are not in time order, as when the table is sorted by a process ID, they are spread across the chart, so each one gets a short tick of its own instead. Hover a mark to see the times it stands for.

If the table has no datetime column, the histogram says so. You can make one from a text timestamp; see Derived columns.

The search box

The search box looks for text anywhere in a row. Click the magnifier, or press / or Ctrl+F, to open it. It has three modes:

Mode	How it matches
Contains	The text appears anywhere in the row. Ignores case for A–Z only.
Regex	A Python regular expression. Ignores case in every script.
Advanced	Several terms joined with AND or OR, each of which can be negated

Search reads the row as its imported columns joined by single spaces. That means a search can match across a column boundary (exe 1500 finds a row whose Process ends in exe and whose next column is 1500), and a regex ^ anchors to the start of the first column, not of each cell. Derived columns are not searched; filter them with their column box instead.

Ctrl+F is taken over on purpose. The browser's own find only sees the rows currently drawn on screen, so it would report "not found" for rows that are there.

Enter runs the search and returns to the grid. Escape clears it.

Advanced mode

In Advanced mode, each term is a separate box. Use + term to add one, the AND/OR list to join it to the previous term, NOT to exclude rows containing it, and ✕ to remove it. NOT works on any term, including the first. AND binds tighter than OR, as in SQL, so a AND b OR c means "(a and b) or c". With more than six terms the bar collapses to a one-line summary; click it to expand, and ▴ minimize to collapse it again.

The search index and slow searches

Winnow builds a search index for each table in the background, and the Indexes section of the Tables manager (t) shows whether it is ready. Build there starts one now rather than on the first search that needs it. Contains and Advanced searches use it once it is ready, for terms of three characters or more. Shorter terms, and every search before the index exists, scan the whole table instead. The results are the same either way; only the speed differs. The hint at the right of the search box says which is happening: substring, substring · index building, advanced · full-text, or regex · full scan. Regex never uses the index.

If a search takes longer than five seconds, it carries on in the background and the rows you had stay on screen. When it finishes, a "Search finished" message offers Apply. Typing a new search, or Escape in the box, cancels it.

Regular expressions that are refused

Winnow checks every regular expression before running it, in filters and in search. It refuses patterns whose repeated group can match the same text in more than one way, such as (a+)+$ or (a|aa)+. On a hostile cell those can take practically forever, and nothing can stop them once started. The error message explains the problem. To fix such a pattern, make each repetition end at something it can't itself match, use a character class instead of alternatives, or use Contains.

Filtering by tag

The tag chips above the grid also filter. Click a tag to show only rows carrying it. Clicking a second tag shows rows carrying either. Any tag shows every tagged row and No tags shows the rows nobody has tagged yet, which is what is left to go through. Right-click a tag and choose Exclude tag to hide the rows carrying it; the chip is struck through until you click it again. See Tagging and notes for tagging itself.

Clearing filters

Clear filters in the toolbar, or c, removes the column filters, the filter builder's conditions, the search, the tag filter and any grouping. It keeps the timeframe, the sort and Hide empty rows. If the row under the cursor is still there afterwards, it stays selected, so you see it in context. Grouping cleared this way can be brought back with X.

Reset view in the table menu does the same and also restores the table's default sort.

To remove only the timeframe, use Clear in the timeframe dialog or Clear timeframe on the histogram.

Undoing a filter change

Press z to undo the last filter change on the table you are looking at. Press it again to keep stepping back through earlier ones. It covers the column filters, the value picker, the filter builder, the search box, the tag filter and the timeframe, so one press also brings back the filters and search that Clear filters removed. Grouping comes back with X, as before. A word typed into a filter box or the search box comes back as one step, not a letter at a time. The sort, grouping and Hide empty rows are left as they are.

Each table keeps its own list, so z never changes another table's filters. The list is gone once the tab is closed or another case is opened. Undoing a tag is a different key, Ctrl+Z; see Tagging and notes.

Keys

Key	Action
f / F	Filter by the selected cell's value / the same, dropping other filters
v	Value picker for the cell's column
e	Filter builder
] or w / [ or q	Next / previous saved filter
c	Clear filters, search and tag filter
z	Undo the last filter change
/ or Ctrl+F	Search box
r / R	Toggle the timeframe / open the timeframe dialog
h	Histogram
J or a / .	Jump to timestamp / jump again
Q	Open the current filter in the SQL pane

Every key can be changed; see Settings and shortcuts.
